The PRO-TOP series of IP44 CEE industrial cable connectors are robust, reliable and easy to connect. Featuring open terminal screws all facing in the same direction the PRO-TOP series of plugs are terminated quickly in the field. The PRO-TOP connectors feature a two piece chassis with front terminal housing and rear cover fitted with thread lock and safety slide, the rugged cable gland at the rear of the plug when tightened grips the cable and seals the gasket at the same time while the integral strain relief prevents cable kinking. Constructed from a heavy-duty Amaplast casing including nickel plated contacts with high heat resistant contact carriers offering excellent corrosion resistance.

  • Cable sizes: 2.5-6.0mm²

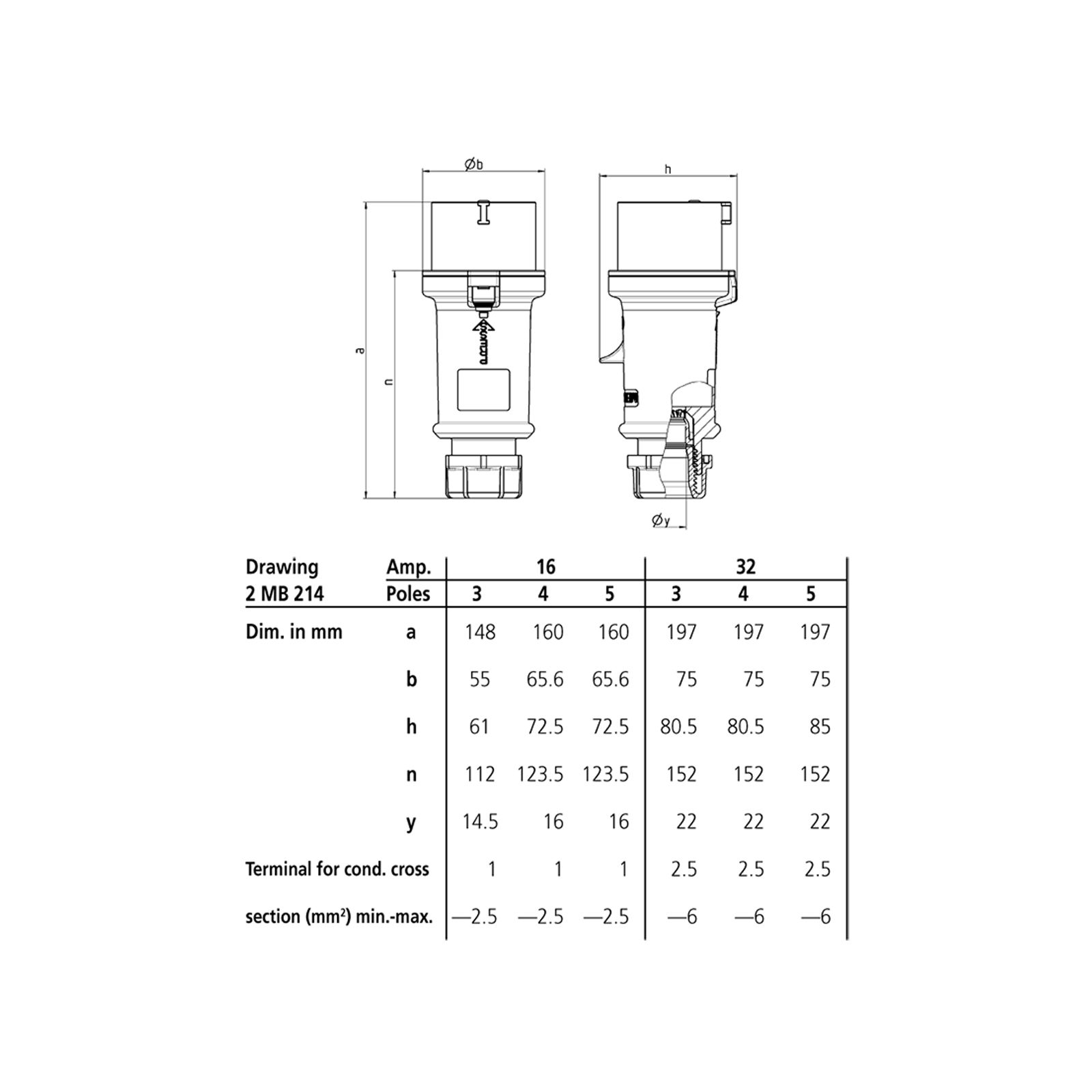

  • Dimensions: 160 x 65.6 x 72.5mm
  • Weight: 0.3kg
Stock code CONN466
Barcode / EAN 0735202933220
Packed Dims (H x W x D) 9 x 7.5 x 20cm
Packed Weight 0.1kg
Outer Carton Quantity 1
Commodity Code 8536699099
Country Of Origin Germany
Order Code: CONN466

32A 400V 4P+E IP4 ProTOP Plug (14A)

Features

Read More
