The powerCON TRUE1 TOP is a locking 16A true mains connector for indoor or outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The connector can be connected or disconnected under load or live, ideal for use in the harsh and demanding environment applications of entertainment equipment like PA systems, LED screens or lighting.

  • Wire size: 2.5mm²
  • Number of electronical contacts: 2+PE
  • Rated current per contact: 16A rms (USA: 20A)
  • Rated voltage: 250Vac
Stock code CONN100
Barcode / EAN 0759478551766
Packed Dims (H x W x D) 5 x 4 x 4cm
Packed Weight 0.1kg
Outer Carton Quantity 1
Commodity Code 8536699099
Country Of Origin China
Order Code: CONN100

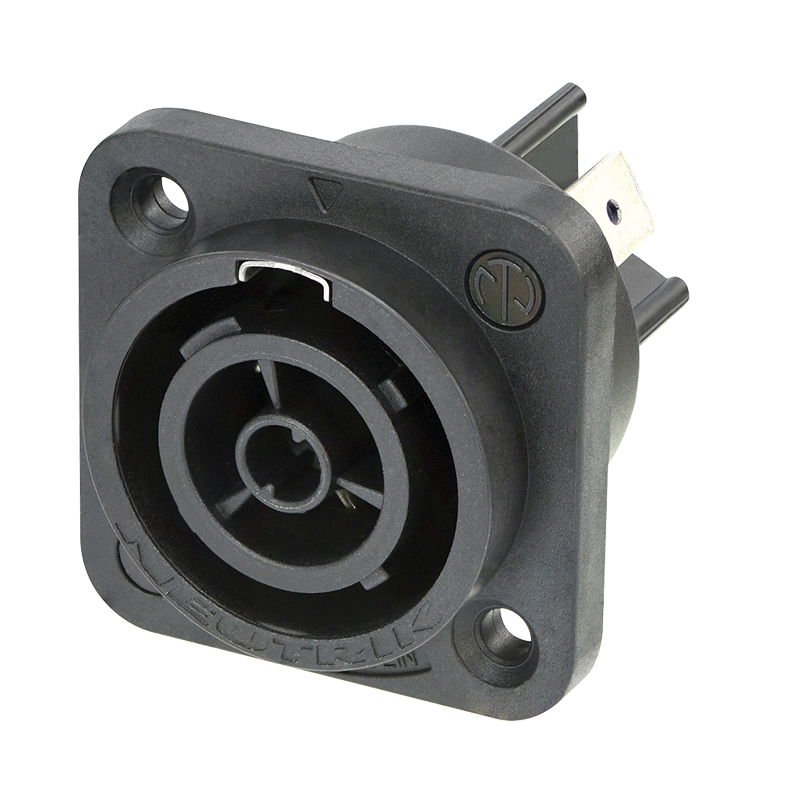

powerCON TRUE1 Chassis Connector NAC3FPX-TOP
